|Place of Origin:||MADE IN CHINA|
|Model Number:||Tungsten Carbide ring|
Payment & Shipping Terms:
|Minimum Order Quantity:||10PC|
|Packaging Details:||box as requirement|
|Payment Terms:||T/T, Western Union, L/C|
|Material:||Ceramic Seal RingTungsten Carbide Ring||Function:||For Oil Pump, Water Pump|
|Transport Package:||Box||HS Code:||848420090|
|Specification:||For Water Pump Mechanical Seal||Certificate:||ISO9001|
|Product Name:||Mechanical Sealing Parts||Stationary Ring:||Tungsten Carbide Ring|

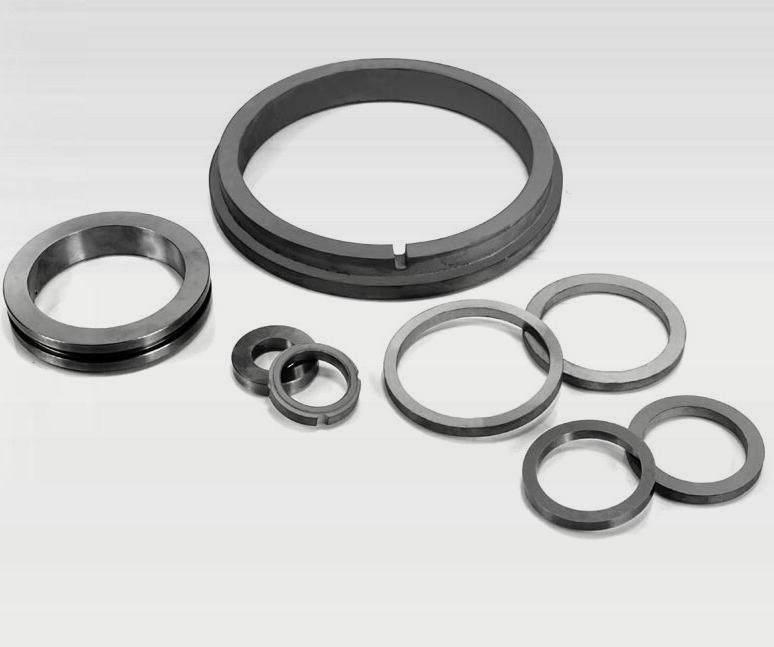

ISO9001 Mechanical Seals Parts,
ISO9001 Tungsten Carbide Ring,
TC Ring Mechanical Seals Parts
Tungsten Carbide (TC) is one of the most versatile materials available for wear parts.
It gives the following benefits:
- High hardness and mechanical strength
- Superior wear resistance
- Good corrosion resistance
- Easily withstands abrasive services
- (Good fracture toughness)
|GRADE||Main Chemical Component(%)||Bending Stength
|Linear Bulge Modulus||Application guide|
|YWN6||94||6||1500||89||14.5-14.9||5.2||Oil,Sewerage,Acid,alkili,Fat,fluidify Hydrocarbon,Strong Alkali With Grain And ETC|
|YG6||94||6||1550||89.5||14.7-15.1||5||Oil,Sewerage,soft,Acid,alkili,Fat,fluidify Hydrocarbon,medium With Grain|
|YG13||87||13||2400||88||13.9-14.2||6||Gas seal of compressor|
|A30||88||2||8||1||1||1700||89||14.0-14.5||6||Oil,Sewerage,soft,Acid,alkili,Fat,fluidify Hydrocarbon,medium With Grain|
|Kinds of Tungsten Carbide Strure accords with Chinese Standard YS/T40|
|ΦD (mm)||Φd (mm)||ΦH (mm)|
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
