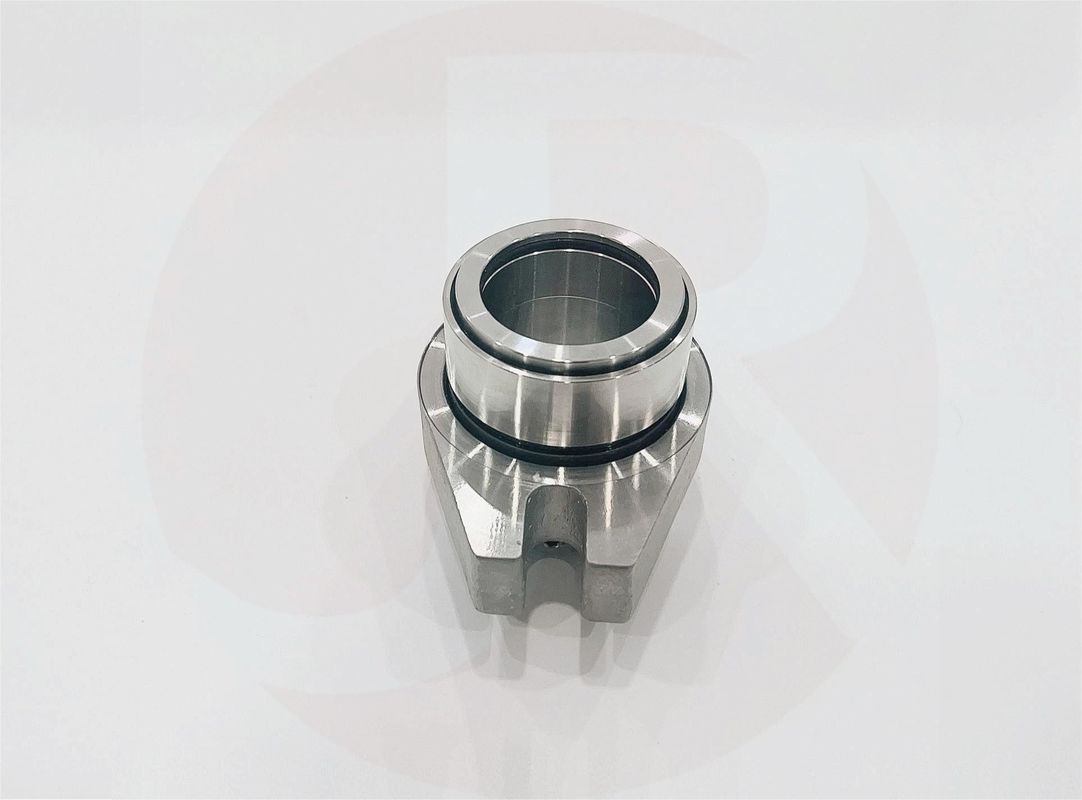

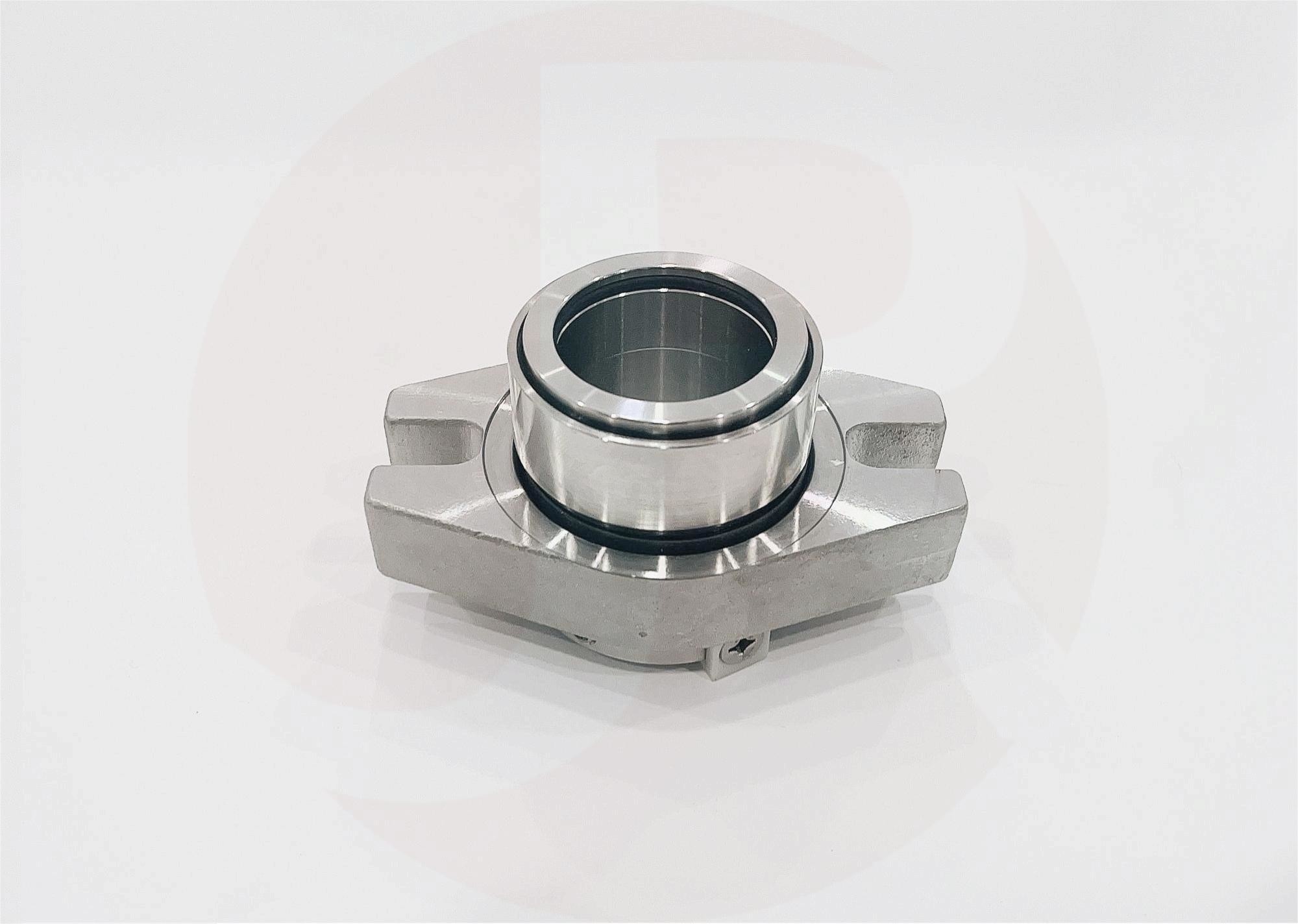

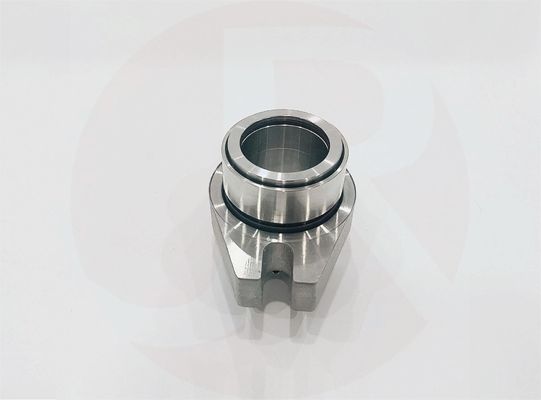

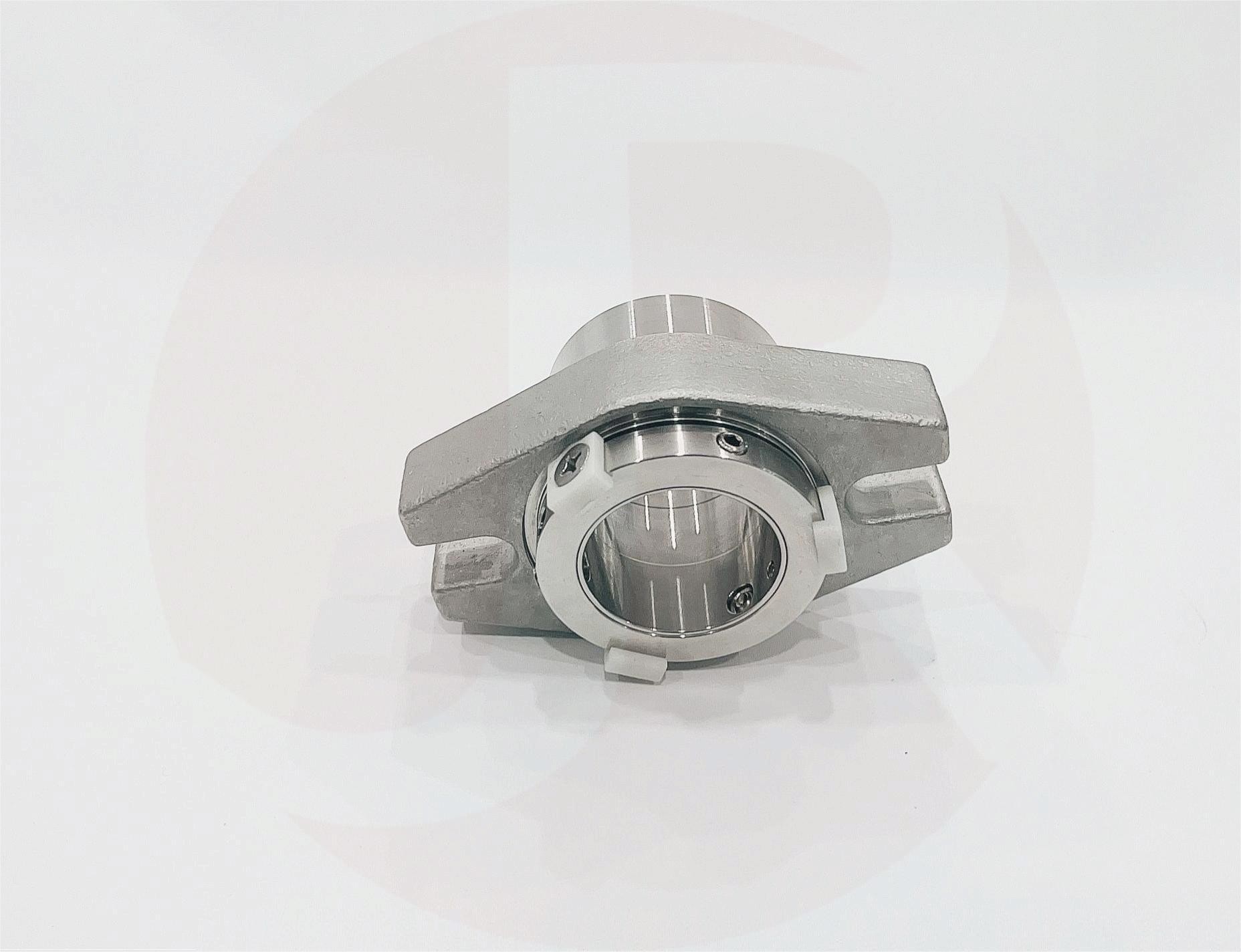

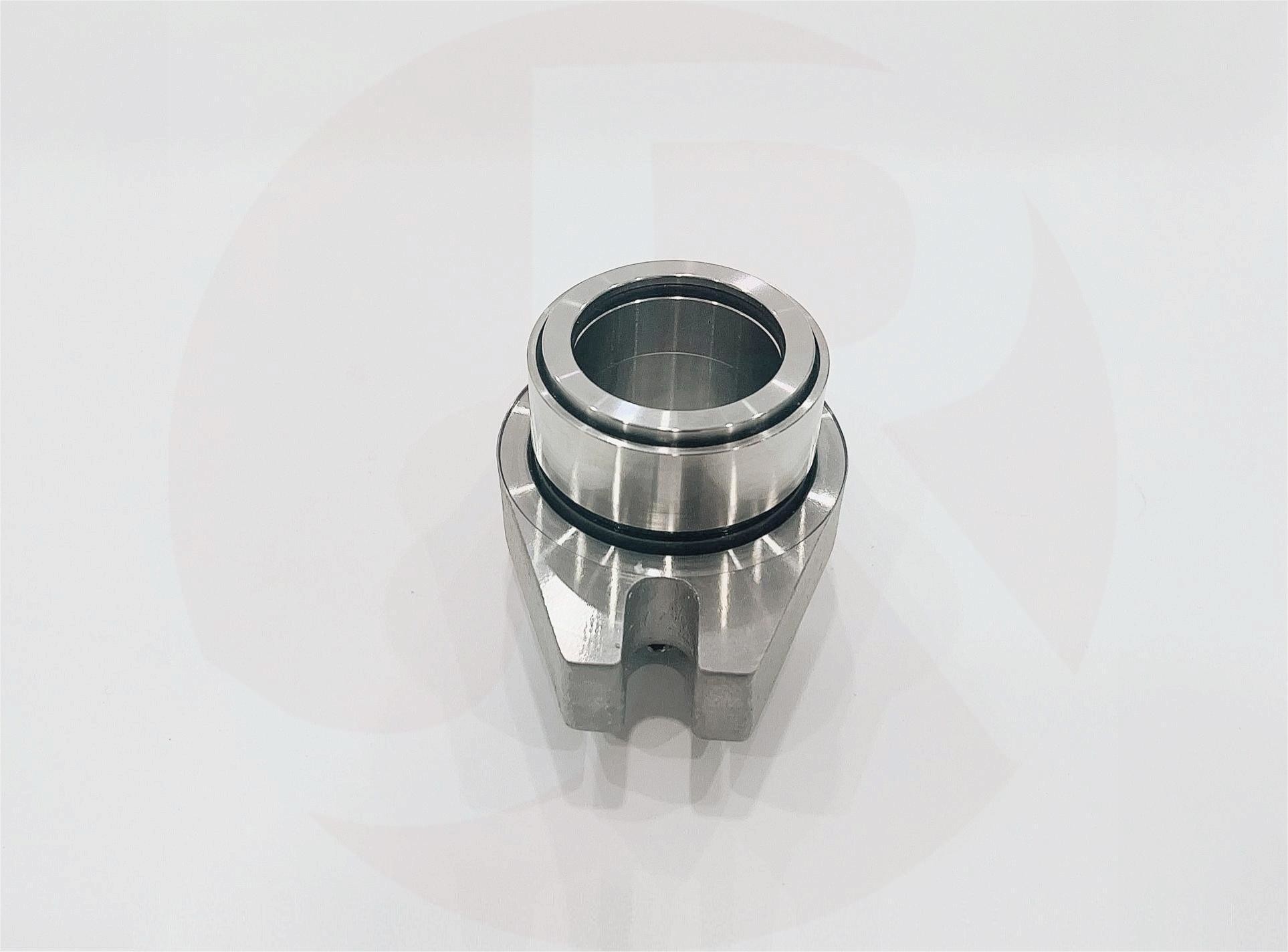

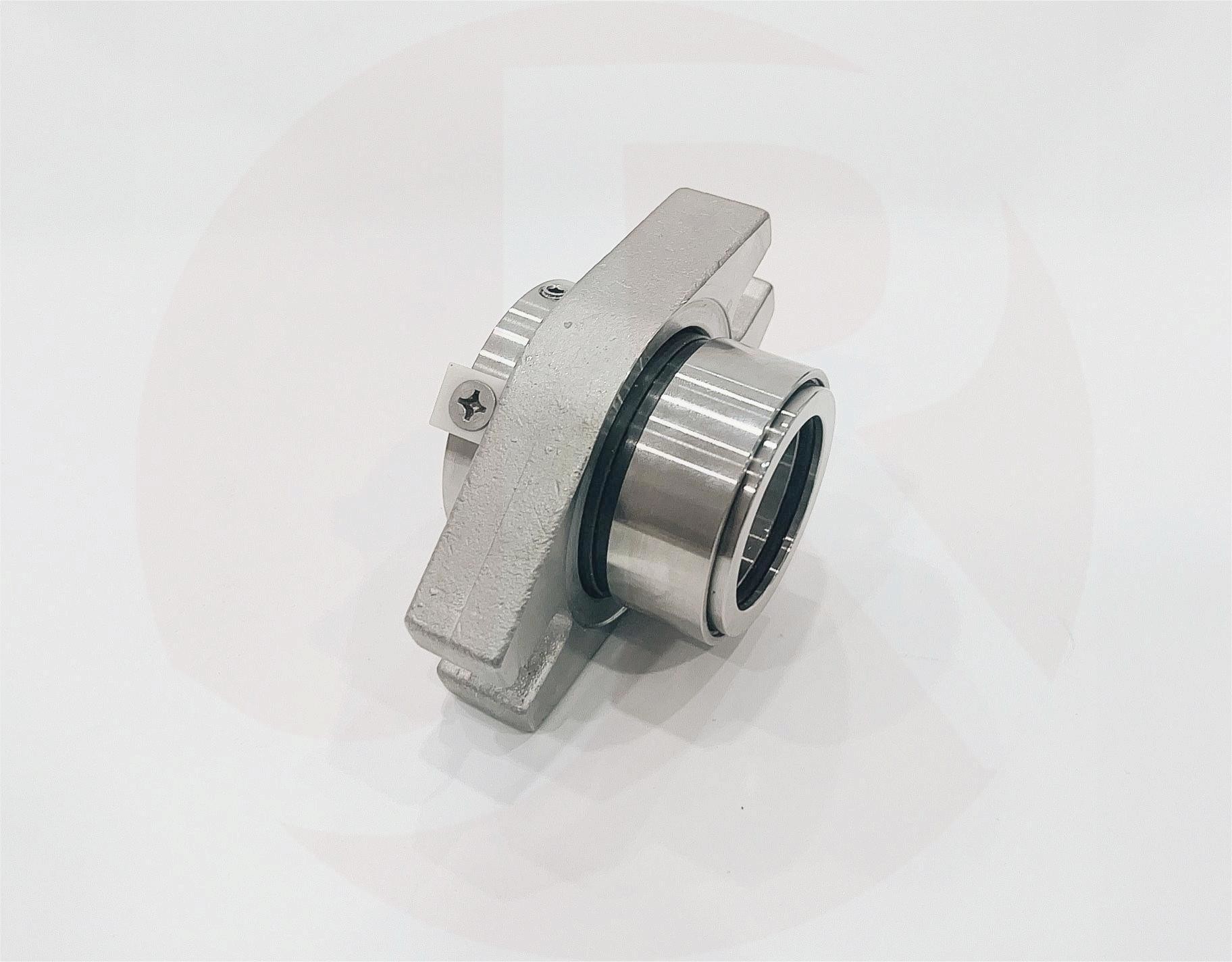

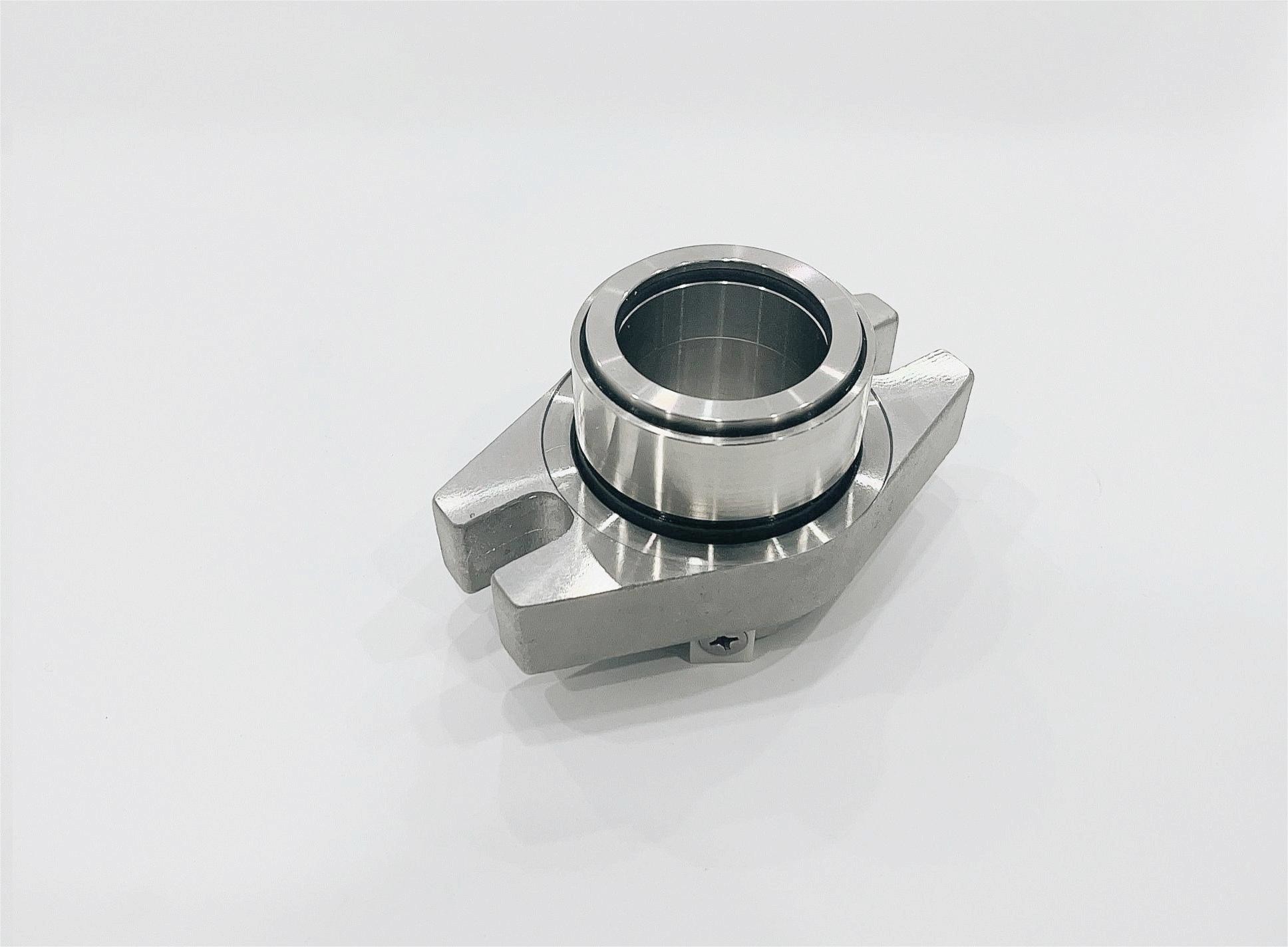

Hydraulic Balanced Cartridge Mechanical Seals For AES Convertor II Shaft

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: Convertor II GU2

Detail Information

Material: SIC SIC VITON CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Aes Conii Cartridge Mechanical Seal Certificate: ISO9001
Type: Cartridge Seal AES Seal Standard: Standard
Style: Mechanical Seal Burgmann H12N Product Name: Cartridge Mechanical Seal Aes Convertor II
High Light:

Hydraulic Balanced Cartridge Mechanical Seals

,

AES Convertor Cartridge Mechanical Seals

,

AES Convertor Cartridge Type Mechanical Seal

Product Description

Cartridge Mechanical Seal AES Convertor II Shaft Seal Cartridge Type Mechanical Pump Seal



Operational Conditions:

  1. Temperature: -20℃-220℃
  2. Speed: ≦15M/S
  3. Pressure: ≦2.5Mpa
  4. Size: 24mm-100mm/1”-4”

Materials

  • Rotary Ring(Carbon/SiC/TC)
  • Stationary Ring(Ceramic/SiC/TC)
  • Secondary Seal(FKM/NBR/EPDM)
  • Spring & Other Parts(SUS304/SUS316



Performance Capabilities

Performance Capabilities Materical combination
Temperature: -30°C to 200°C, dependent on o-ring material
Face: Carbon, SiC, TC
Pressure: Up to≦2.5Mpa Seat: Ceramic, SiC, TC
Speed: Up to 15 m/s O-ring: NBR, EPDM,FEP etc
End play/axial float allowance: ±1mm Spring: SS304, SS316, hastelloy
Sizes:1.000” to 4.000” (24mm - 100mm)
Metal parts: SS304, SS316
  • Short external length
  • Compact gland for use on applications with limited space
  • Hydraulically balanced seal face technology for reduced power consumption
  • Non-clogging rotaries and non-shaft-fretting elastomers
  • Multiple spring and positive set screw shaft drive
  • Sizes available from 1.000” to 4.000” (24mm - 100mm)

Hydraulic Balanced Cartridge Mechanical Seals For AES Convertor II Shaft 0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
