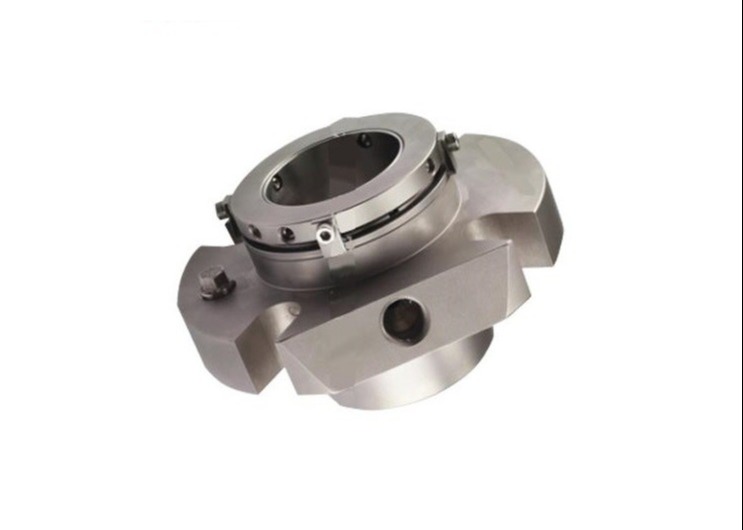

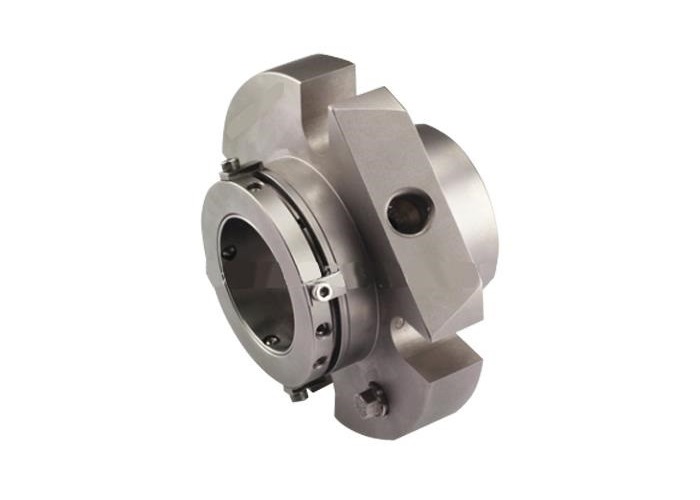

Pool Pump 2.0Mpa Single Cartridge Mechanical Seals Replacing Anga BE2
Pool Pump 2.0Mpa Single Cartridge Mechanical Seals Replacing Anga BE2 Pool Pump 2.0Mpa Single Cartridge Mechanical Seals Replacing Anga BE2
Contact Now

Pool Pump 2.0Mpa Single Cartridge Mechanical Seals Replacing Anga BE2

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: Anga BE2

Detail Information
Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Pump Cartridge Seal Anga BE2 Seal Certificate: ISO9001
Type: Cartridge Single Mechanical Seal Anga BE2 Seal Standard Or Nonstand: Standard
Application: Industrial Pump Seal Product Name: Mechanical Seal Type Anga BE2 Seal
High Light:

Pool Pump Cartridge Mechanical Seals

,

2.0Mpa Cartridge Mechanical Seals

,

2.0Mpa Single Cartridge Mechanical Seal

Product Description

Cartridge Single Mechanical Seal To Replace Anga BE2 Seal Use Pool Pump Mechanical Seal Anga BE2


Operations Conditions:

  1. Temperature: -20℃-200℃
  2. Speed: ≦12.5M/S
  3. Pressure: ≦2.0Mpa
  4. Size: 22mm-100mm

Materials:

  • Face: Carbon, SiC, TC
  • Pressure:Up to 25 bar
  • Seat: SiC, TC
  • Bellow: NBR, EPDM, VIT, Aflas, FEP, Kalrez, Chemraz etc.
  • Metal parts: SS316, hastelloy C, AM350
  • The type seal can replace with Anga type BE2 cartridge seal.

Performance Capabilities:

Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 2Mpa
Speed
Up to 12.5m/s
End play/axial float allowance
±0.1mm
Size24-65MM
 Sizes:22mm-100mm
Brand
JR
Face
Carbon, SiC, TC
Seat

Elastomer
FKM, EPDM, Kalrez
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

  • 1,Direct replacement for gland packings
    2,Cartridge design suitable for stuffing boxes with limited space
    3,Easy and quick assembly and disassembly
    4,The seal is centered against pump shaft

    5,Springs are protected against contact with pumped medium

Pool Pump 2.0Mpa Single Cartridge Mechanical Seals Replacing Anga BE2 0

SIZE/METRIC D3 D4 DM DZ L1 L2 L3 S G
MIN MAX
22 38.0 40.0 48.0 56 105 15 28 63 14 1/4
25 43.0 44.0 51.0 58 105 15 28 63 14 1/4
26 46.0 47.0 52.0 65 105 15 28 63 14 1/4
28 46.0 47.0 52.0 65 105 15 28 63 14 1/4
30 48.0 49.0 56.0 65 105 15 28 63 14 1/4
32 49.8 51.0 57.0 67 105 15 28 63 14 1/4
33 49.8 51.0 57.0 67 110 15 28 63 14 1/4
35 53.0 54.0 62.0 70 113 15 28 63 14 3/8
38 56.0 57.0 66.0 75 123 15 28 63 14 3/8
40 58.0 59.0 69.0 75 123 15 28 63 16 3/8
43 60.5 61.5 70.5 80 130 15 28 63 16 3/8
45 62.5 64.0 73.0 80 130 15 28 63 16 3/8
48 65.6 67.0 75.0 84 138 15 28 63 16 3/8
50 68.0 69.0 78.0 87 142 15 28 63 16 3/8
53 72.0 73.0 87.0 97 147 15 28 63 18 3/8
55 73.0 74.0 83.0 97 147 15 28 63 18 3/8
60 78.0 79.0 91.0 102 157 15 28 63 18 3/8
65 83.0 84.5 99.0 109 163 15 28 63 18 3/8
70 93.0 95.0 108.0 118 170 19 32 77 18 3/8
75 98.0 100.0 119.0 129 190 19 32 77 18 3/8
80 105.0 107.0 124.0 135 195 19 32 77 18 3/8
85 110.0 112.0 128.0 139 200 19 32 77 22 3/8
90 115.0 117.0 135.0 145 205 19 32 77 22 3/8
95 119.0 120.7 137.0 148 210 19 32 77 22 3/8
100 125.4 127.0 144.0 154 218 19 32 77 22 3/8

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
