Pressure Less 1MPa 68B Industrial Shaft Seals 848420090 HS Code

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: JR
Certification: ISO9001
Model Number: 68B
Payment & Shipping Terms:
Minimum Order Quantity: 5PC
Price: Negotiated
Packaging Details: box as requirement
Delivery Time: 20-30DAYS
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PC/Month

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Aesseal W03 Seal Certificate: ISO9001
Type: 68B Standard: Standard
Style: Mechanical Seal Application: John Crane 87 (EI/ EC) Seal Aesseal W03 Seal Roplan RTH87/ R90 Seal Sterling 280W/ 282 Seal
High Light:

68B Industrial Shaft Seals

,

1MPa Industrial Shaft Seals

,

848420090 Industrial Mechanical Seals

Product Description

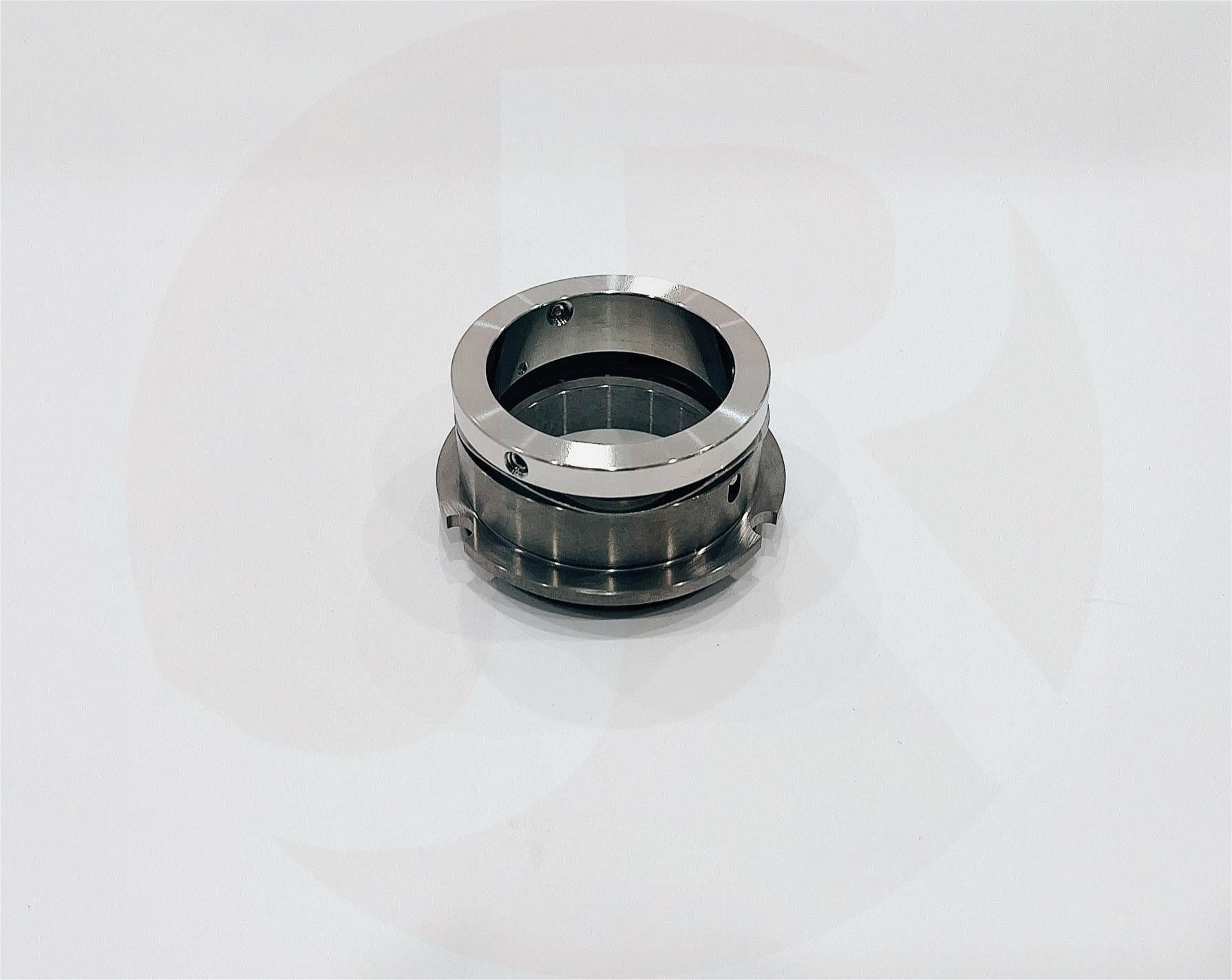

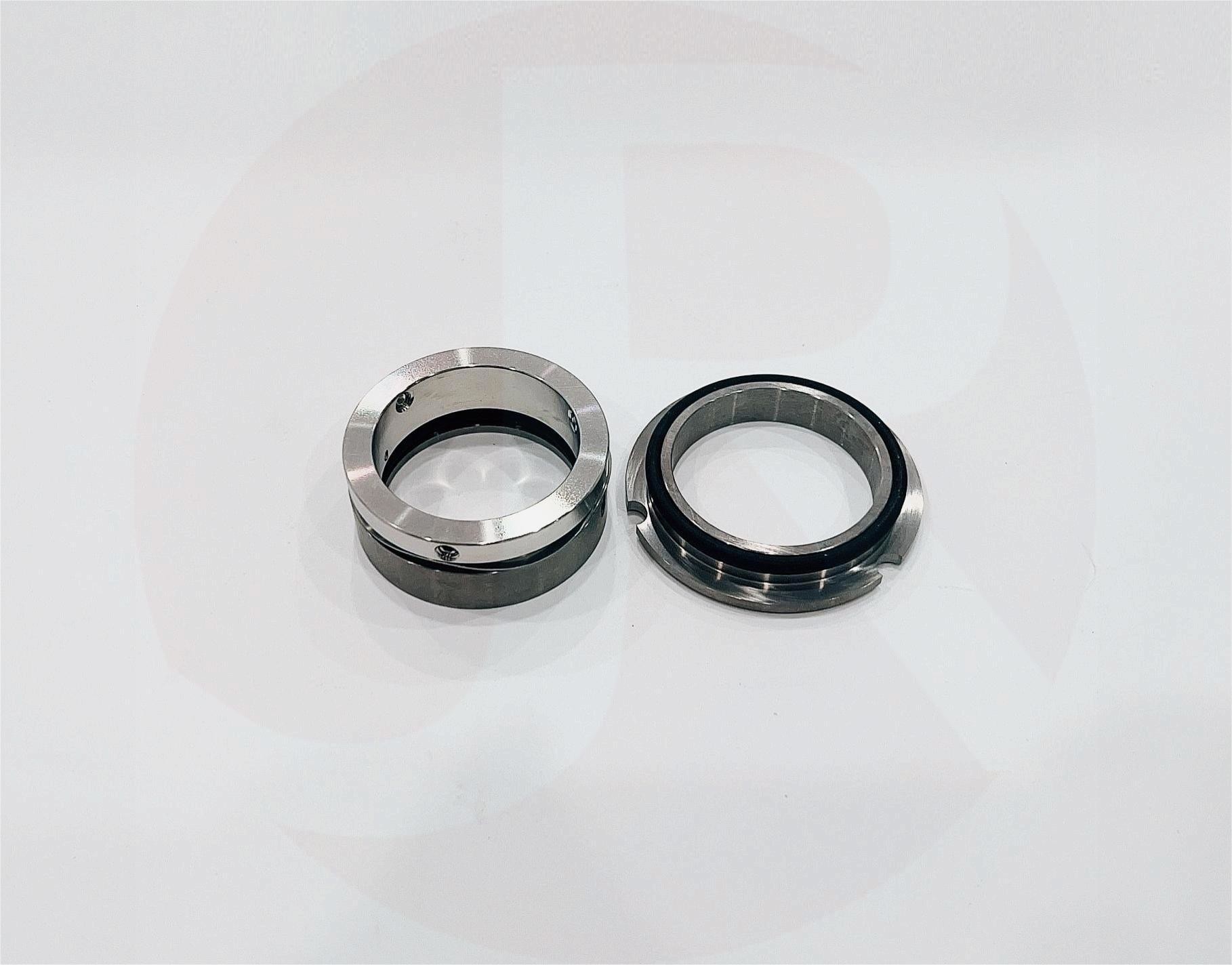

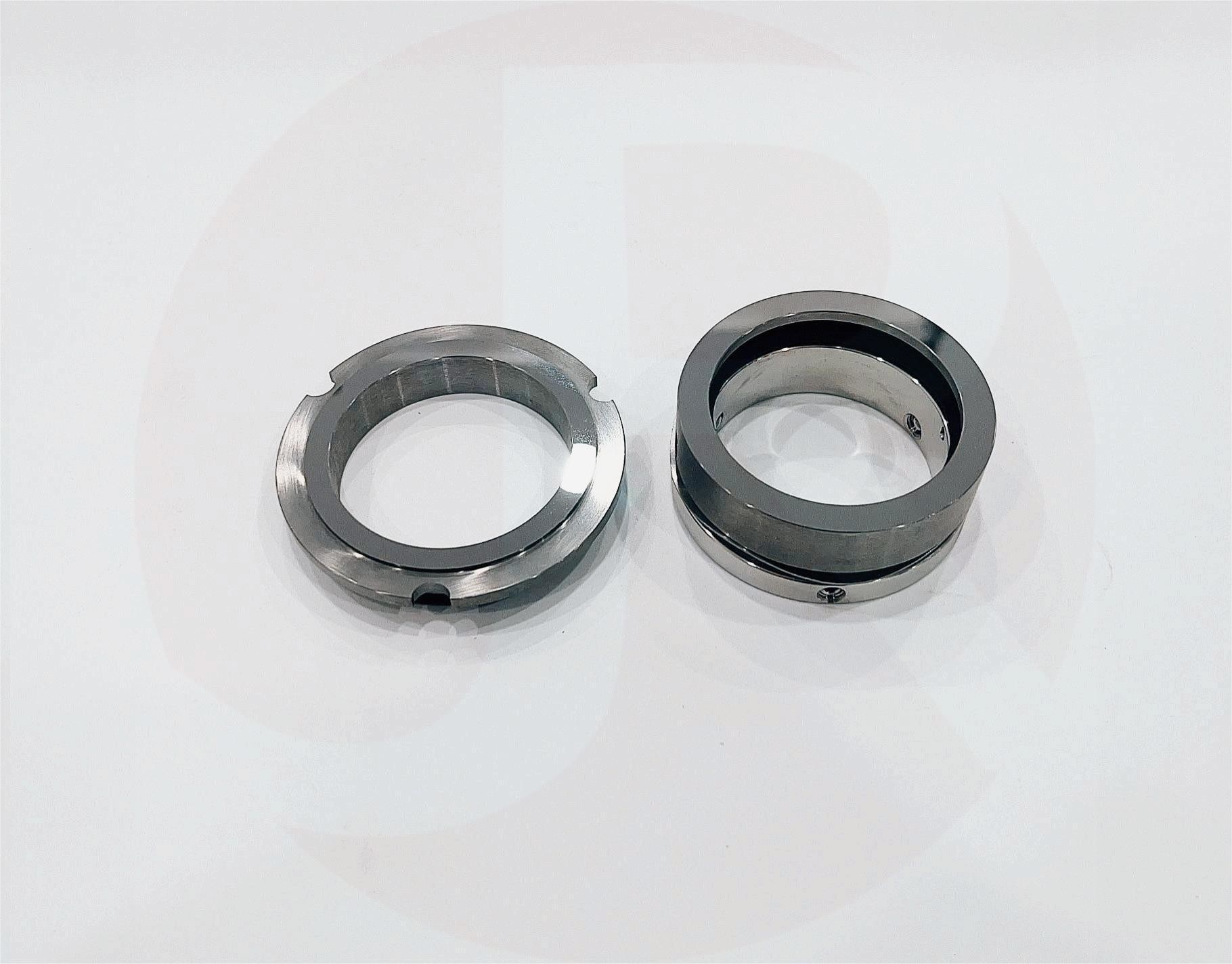

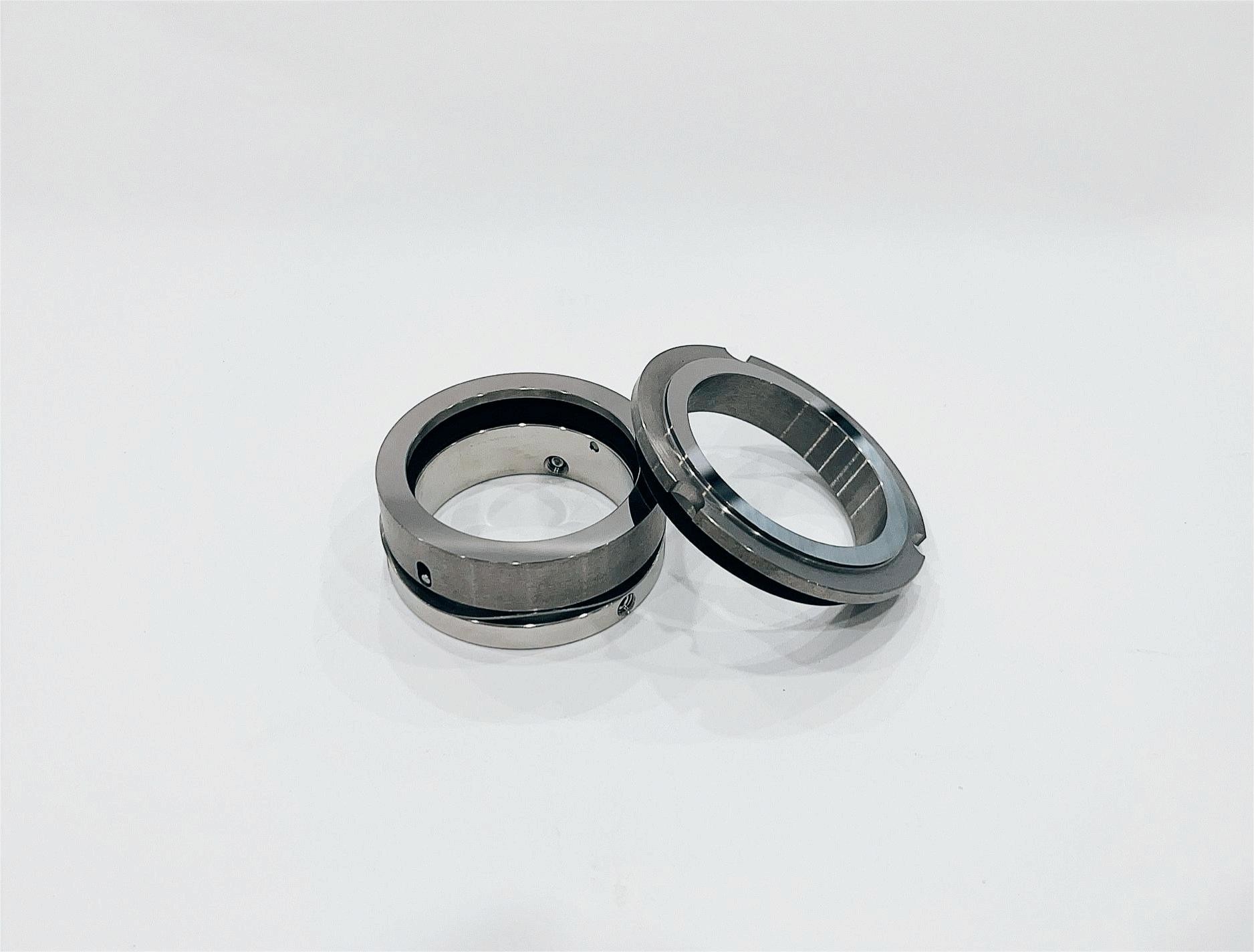

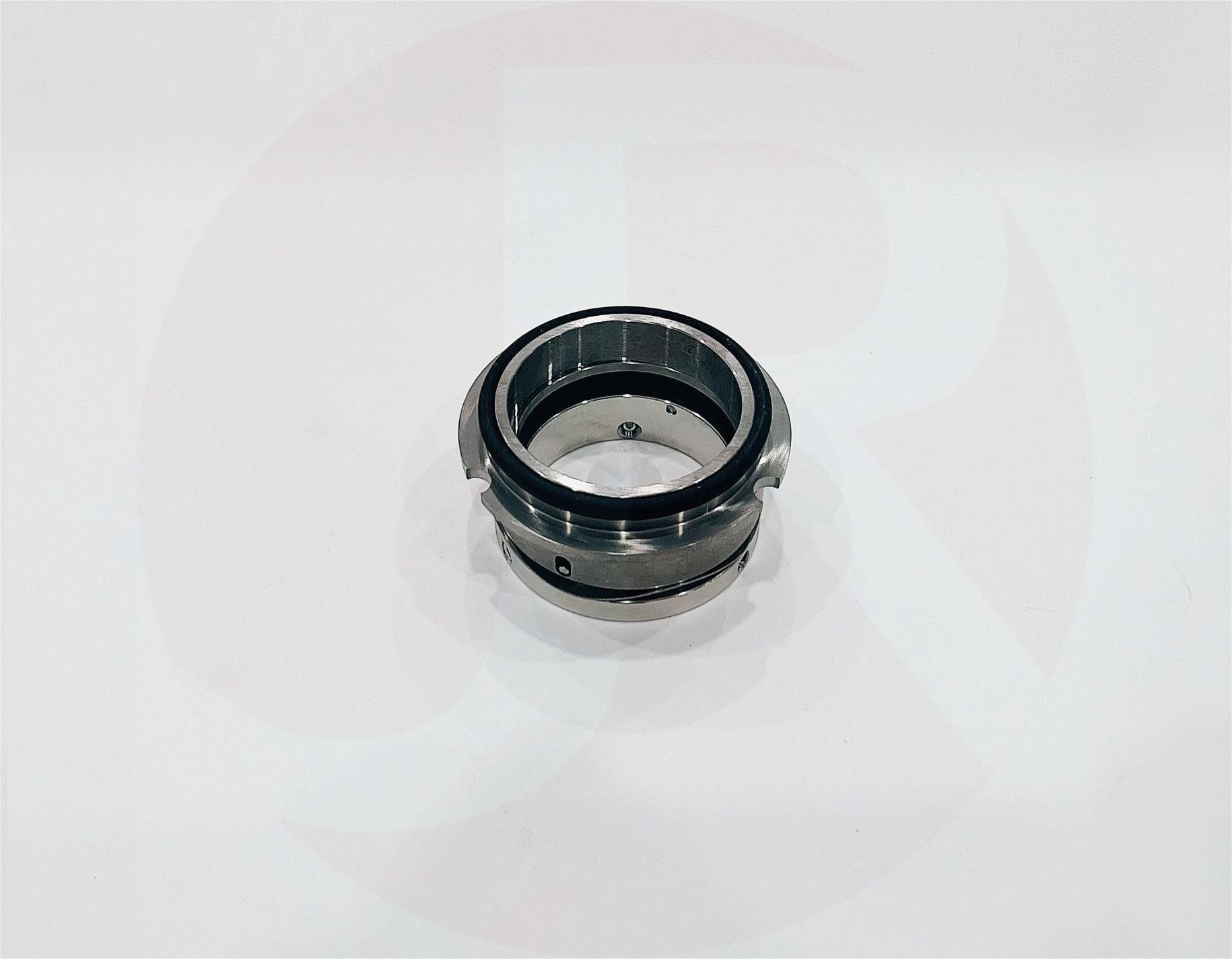

Mechanical Seal 68B Industrial Shaft Seals For John Crane 87 Seal Aesseal W03 Seal Roplan



Operational Conditions:

  1. John Crane 87 (EI/ EC) seal
  2. Aesseal W03 seal
  3. Roplan RTH87/ R90 seal
  4. 1.Temperature: -40ºC to +200ºC
  5. Pressure: ≤1MPa
  6. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, TC, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities



sulzer pump Aesseal W03 seal  68B  mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
20mm to 75mm
Face: Carbon, SiC, TC
Pressure:Up to 10 bar
Seat: Ceramic, SiC, TC
Speed:Up to 15 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316
  • 1.Replacement to:
  • Sterling 280W/ 282 seal
  • 2. Our seals can replace the original seals.
  • 3.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc
  • 4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
  • 5.OEM and Customized products is welcomed.
  • 6. Factory Price,High Quality ,Fast Delivery and Best Sevice.

Pressure Less 1MPa 68B Industrial Shaft Seals 848420090 HS Code 0

Pressure Less 1MPa 68B Industrial Shaft Seals 848420090 HS Code 1Pressure Less 1MPa 68B Industrial Shaft Seals 848420090 HS Code 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
