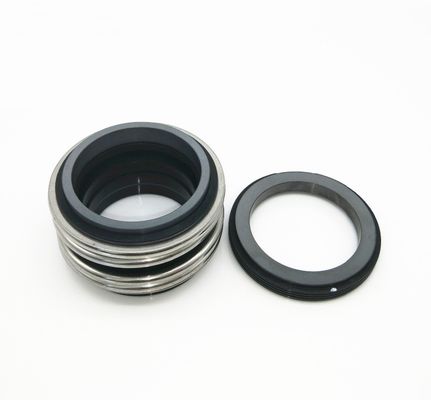

40mm Burgman MG12 Wilo G6 G606 Single Spring Mechanical Seal , 40mm Elastomer Bellow Seal

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: MG12

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
HS Code: 848420090 Specification: Burgmann MG12, AESSEAL B012, Flowserve Pac-Seal 192
Certificate: ISO9001 Type: ROTEN L3К, Vulcan Type 192
Standard Or Nonstand: Standard Size: 12-40MM
Product Name: Mechanical Seal Burgmann MG12, AESSEAL B012 Sample: Allowed
High Light:

G606 Single Spring Mechanical Seal

,

40mm Single Spring Mechanical Seal

,

40mm Elastomer Bellow Seal

Product Description

Elastomer Bellow Seal MG12 Burgmann Mechanical Seal For Water Pump Aesseal B02/B012/B013 Seal



Operations Conditions:

  1. Structure: Single End
  2. Pressure: Low Pressure Mechanical Seals
  3. Speed: General Speed Mechanical Seal
  4. Temperature: General Temperature Mechanical Seal
  5. Performance: Wear and Weak Corrosion
  6. Standard: DIN24960, ISO3069, GB6556, EN12756
  7. Model NO.: MG12 and MG13
  8. Balance: Unbalanced
  9. Specification: Inner Diameter: 10 mm to 110 mm​

Materials:

  • ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite
  • STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite
  • BELLOWS: Buna, FKM, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard or 316 SS option available​

Performance Capabilities

Temperature

-30℃ to 200℃, dependent on the elastomer

Pressure

Up to 10 bar

Speed

Up to 15 m/s

End play/axial float allowance

±0.1mm

Size

12mm to 100mm

Brand

JR

Face

Carbon, SiC, TC

Seat

Ceramic, SiC, TC

Elastomer

NBR, EPDM, FKM etc.

Spring

SS304, SS316

Metal parts

SS304, SS316

Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.





  • single end, unbalanced, dependent direction of rotation, rubber bellow, bellow transmission. This component has a compact structure with good compatibility and easy installation. The bellow can provide support against the pressure to eliminate indentation and corrugation. The bellow and the spring provide pressure compensation to the seal faces. The rubber bellow design prevents possible radial run-out so that the floatability of the rotary ring is increased.
  • This mechanical seal is also known as KSB Part No. 433 mechanical seal. Many other pump manufacturers such as WILO are also using the same type of mechanical seal as their standard sealing solutions.





40mm Burgman MG12 Wilo G6 G606 Single Spring Mechanical Seal , 40mm Elastomer Bellow Seal 0



40mm Burgman MG12 Wilo G6 G606 Single Spring Mechanical Seal , 40mm Elastomer Bellow Seal 140mm Burgman MG12 Wilo G6 G606 Single Spring Mechanical Seal , 40mm Elastomer Bellow Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
