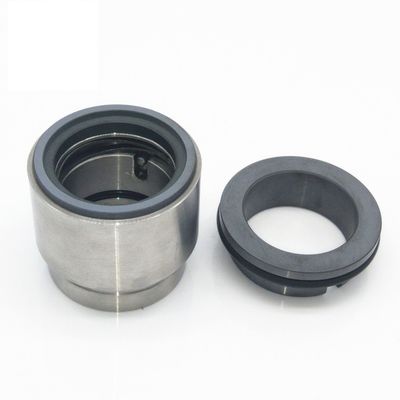

Burgmann HJ92N Replace Wave Spring Mechanical Seal
Burgmann HJ92N Replace Wave Spring Mechanical Seal Burgmann HJ92N Replace Wave Spring Mechanical Seal Burgmann HJ92N Replace Wave Spring Mechanical Seal Burgmann HJ92N Replace Wave Spring Mechanical Seal
Contact Now

Burgmann HJ92N Replace Wave Spring Mechanical Seal

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: H92N

Detail Information
Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: H92N Certificate: ISO9001
Type: Burgmann HJ92N Seal Aesseal M010 Seal Roplan 201 Seal Standard: Standard
Style: Mechanical Seal Product Name: Burgmann HJ92N Seal Aesseal M010 Seal Roplan 201 Seal Roten EHS Seal Hecker HN 435 Seal Ropac Propac 50 Seal
High Light:

Burgmann HJ92N Replace seal

,

HJ92N Replace Wave Spring Mechanical Seal

,

AES M010 replace Mechanical Seal

Product Description

Wave Spring Mechanical Seal to Replace Burgmann HJ92N



Operational Conditions:



  • Type:Wave Spring Mechanical Seal,Suit for, Grundfos,Hilge, Ropac Propac 50 Pumps
  • Replacement:AES M010,Burgmann HJ92N,Roten EHS
  • Temperature:-20℃ to +180℃
  • Pressure:≤2.5Mpa
  • Speed:≤15m/s



Materials:



  • Seal face: Carbon graphite antimony impregnated (A),
  • Carbon graphite resin impregnated (B)
  • Seat G16: Silicon carbide (Q1)
  • Standards and approvals




Performance Capabilities

HJ92N mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 80mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Part:SS304 SS316

  • Mechanical seals of the HJ92N series from EagleBurgmann are designed for media containing, solids or with high viscosity e.g. sugar, paper, sewage and waste water industry. The springs are product protected. There is no sticking or clogging making the design rugged and reliable. The seal is independent of direction of rotation.
  • 2.it is equivalent to
  • Roten EHS seal
  • Hecker HN 435 seal
  • Ropac Propac 50 seal
  • 3.Our seals can replace the original seals.
  • 4.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
  • 5.Customized products and OEM is welcomed
  • 6. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

Burgmann HJ92N Replace Wave Spring Mechanical Seal 0

HJ92N
Size/Mettic d D3 D6 D7 D8 L3 L4 L8 F M
18 18 32 27 33 3 30.5 7 15 3 M4
20 20 34 29 35 3 30.5 7 15 3 M4
22 22 36 31 37 3 30.5 7 15 3 M4
24 24 38 33 39 3 33 7 15 3.5 M5
25 25 39 34 40 3 33 7 15 3.5 M5
28 28 42 37 43 3 35.5 7 15 3.5 M5
30 30 44 39 45 3 35.5 7 15 3.5 M5
32 32 47 42 48 3 35.5 7 15 3.5 M5
33 33 47 42 48 3 35.5 7 15 3.5 M5
35 35 49 44 50 3 35.5 7 15 3.5 M5
38 38 54 49 56 4 37 8 16 4 M5
40 40 56 51 58 4 37 8 16 4 M5
43 43 59 54 61 4 37 8 16 4 M5
45 45 61 56 63 4 37 8 16 4 M5
48 48 64 59 66 4 37 8 16 4 M5
50 50 66 62 70 4 38 9.5 17 4.5 M6
53 53 69 65 73 4 38 9.5 17 4.5 M6
55 55 71 67 75 4 38 9.5 17 4.5 M6
58 58 78 70 78 4 42 10.5 18 4.5 M6
60 60 80 72 80 4 42 10.5 18 4.5 M6
63 63 83 75 83 4 42 10.5 18 4.5 M6
65 65 85 77 85 4 42 10.5 18 4.5 M6
68 68 88 81 90 4 41.5 11 18.5 4.5 M6
70 70 90 83 92 4 48.5 11.5 19 5 M6
75 75 99 88 97 4 48.5 11.5 19 5.5 M8
80 80 104 95 105 4 48.5 11.5 19 5.5 M8
85 85 109 100 110 4 48.5 11.5 19 5.5 M8
90 90 114 105 115 4 52 13 20.5 5.5 M8
95 95 119 110 120 4 52 13 20.5 5.5 M8
100 100 124 115 125 4 52 13 20.5 5.5 M8



Burgmann HJ92N Replace Wave Spring Mechanical Seal 1Burgmann HJ92N Replace Wave Spring Mechanical Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
