960 O Ring Industrial Mechanical Seals Silicon Carbide Seal

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 960

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Pump Seal Mechanical Seal Types Vulcan 96 Certificate: ISO9001
Type: Mechanical Seal 960 Standard Or Nonstand: Standard
Style: Multi-spring Mechanical Seal R-960 Size: 25-100MM
High Light:

960 O Ring Industrial Mechanical Seals

,

960 Industrial Mechanical Seals

,

960 O Ring Silicon Carbide Seal

Product Description

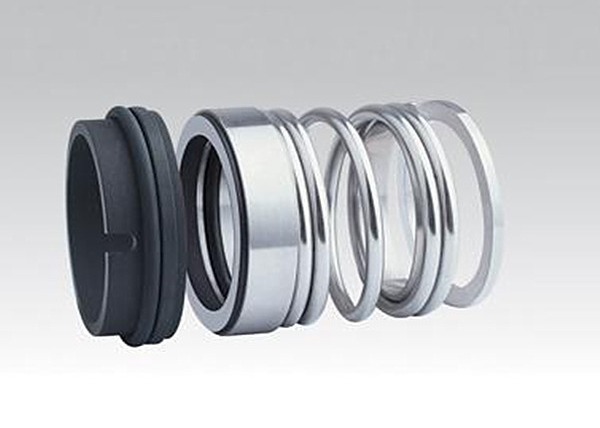

John Crane Mechanical Seal Silicon Carbide Seal 960 O-Ring Industrial Mechanical Seals


Operations Conditions:

  1. Speed: ≤25m/s
  2. Pressure: ≤1MPa
  3. Temperature: -20ºC to +200ºC

Materials:

  • 1- Rotary ring: SIC / TC / SUS.
  • 2- Stationary ring: SIC / Carbon.
  • 3- Bellows: EPDM / FKM / M1 / PTFE.
  • 4- Spring: SS304 / SS316.
  • 5- Metal parts: SS304 / SS316.

Performance Capabilities:


Operational conditions:Materials
temperature-50℃to +200℃Stationary ringQ2, U2,B,
Pressure<<1 MpaRotary ringU22,Q22
Speed<<25M/SSecondary sealP,E,N,V,Aflas
StandardDIN24960Spring and metal partsF,G,
Application: clean water, sewage water, Oiland other moderately corrosive fluids

Design:950,960,970 only differ inthe drive mechanism from the shaft the shaft t the rotary seal face. 950 isdrive directly from the shaft.


  • replace mechanical pump seals 960
  • Available as standard with an anti-rotational Type 95 stationary and with either a monolithic stainless steel head or with inserted carbide faces.
  • Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components

960 O Ring Industrial Mechanical Seals Silicon Carbide Seal 0



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
