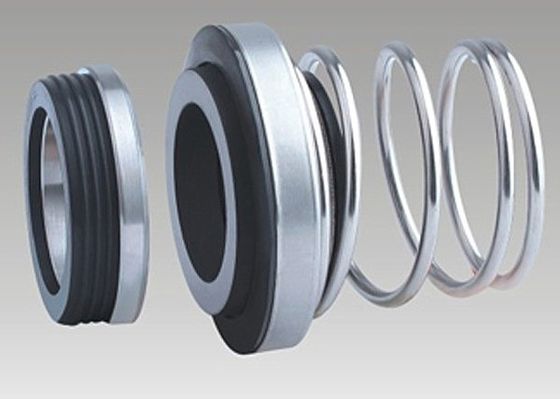

30MM Metal Bellow Mechanical Seal 290 Elastomer Bellow Seal

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 290

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: APV Pump Seal Mechanical Seal Certificate: ISO9001
Type: APV Pump Standard: Standard
Size: 1" 1.5" Name: 290 Water Pump Seal
High Light:

290 Metal Bellow Mechanical Seal

,

30MM Metal Bellow Mechanical Seal

,

290 Elastomer Bellow Seal

Product Description

Mechanical Seal Metal Bellow Seal Elastomer Bellow Seal 290 Suitable For APV Pumps Used In Beverage Dairy Applications​


Operational Conditions:

  1. Equivalent to AES dual seal
  2. Double Seals to suit APV W Pumps
  3. Operating Limits:
  4. Temperature: -10º C to +120º C
  5. Pressure: ≤ 1.5MPa
  6. Speed: ≤ 8m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. the material for Stationary seat is Stainless steel and Carbon in the rotary face.

Performance Capabilities:



Size
20MM 25MM 30MM
Brand
JR
Face
cAR SiC, TC
Seat
CER SIC TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



Mechanical Seals suitable for APV ZMA ZMB ZMD. ZMH. ZMS and ZMKrosita and Pasilac Pumps These seals are specially used in beverage anddairy applications

30MM Metal Bellow Mechanical Seal 290 Elastomer Bellow Seal 0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
