API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar
API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar
Contact Now

API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: 17D

Detail Information
Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: 17D Mechanical Seal Certificate: ISO9001
Type: VULCAN TYPE7D SEALS, UNITEN 5 SEALS Roten Uniten 5 Seal Standard Or Nonstand: Standard
Style: Mechanical Seal VULCAN TYPE7D SEALS, UNITEN 5 SEALS Roten Uniten 5 Seal Size: 3/8”, 1/2”, 5/8”, 3/4”, 7/8”, 1”
High Light:

API628 Oil Pump Mechanical Seal

,

7D Oil Pump Mechanical Seal

,

API628 Pump Oil Seal

Product Description

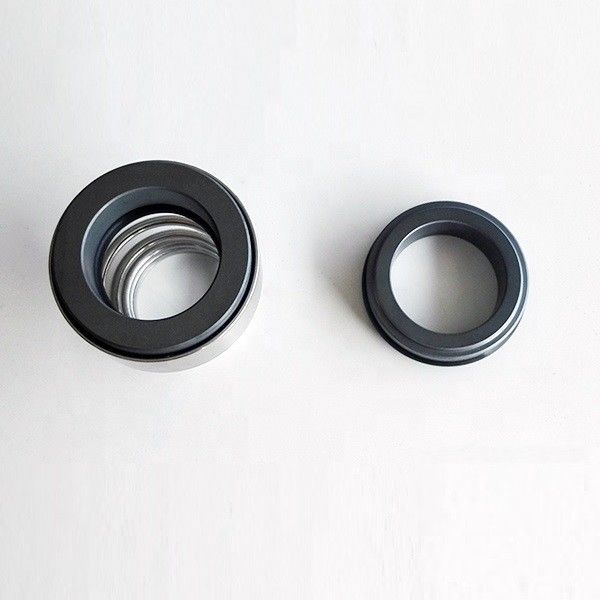

Mechanical Seals Roten 5 Uniten 5 Seals For Oil Pump Mechanical Seal Replacement Vulcan 7D



Operations Conditions:

  1. VULCAN TYPE7D SEALS, UNITEN 5 SEALS
  2. Roten Uniten 5 seal
  3. Temperature:-31ºC to +200ºC
  4. Pressure:≤0.8bar
  5. Speed:≤18m/s

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide
  • Rotary Ring: Carbon Graphite(Furan),Silicon Carbide
  • Secondary Seal:Fluorocarbon Rubber(FKM),Nitrile(NBR),
  • Spring and Metal Parts:Stainless Steel
  • Seat Types:
  • Applications:Clean Water



Performance Capabilities:

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 0.8 MPA
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
10-100MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well



1. it is equivalent to 7D Mechanical Seal

2. Our seals can replace the original seals.

3.Customized products and OEM is welcomed

4. We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

5. Our seals are high-qualified due to we strictly follow the DIN24960, ISO3069,

 EN12756, API628 standards.



API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar 0

API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar 1API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar 2API628 7D Oil Pump Mechanical Seal Pressure Less 0.8bar 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
